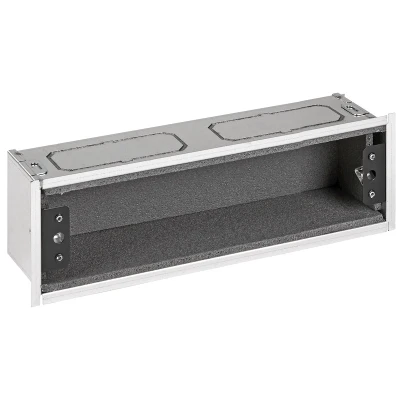

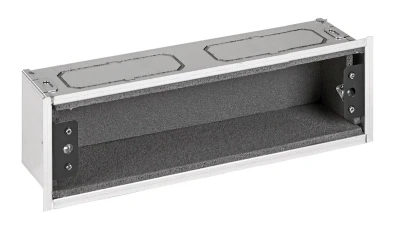

LO-BOX2
Double nozzle insulated low depth plenum
Series 5252
Double nozzle insulated low depth plenum
| Made of galvanised sheet internally coated with 4-mm thick insulation (λ=0.0420W/mK). |
| Dimensions (LXHXD): 325x120x88mm. |
| Possibility of adjusting the flow rate by inserting the limiters to be combined according to the type of pipe used. |
| Uscite pre-tranciate sia sul retro (3xDN80), sul lato superiore e sul lato inferiore (3xDN80 + 2x132x52) da aprire in loco in base all'esigenza. |
| Asole verniciate nere con clip sulla parte frontale per accoppiamento a griglie serie 5311.B e 5312.B |
Download
Low depth double plenums for grids
| Code | Model | Description | Box | Carton | Cat. | € |
| 52529805 | LOBOX-2/52 | 2x+2x 132x52mm, 300x88mm | 1 | 1 | 30.09 | ||52529805_LastPrice|| |
Mounting brackets included in delivery.
