MA-BOX | Series 5004

MA-BOX

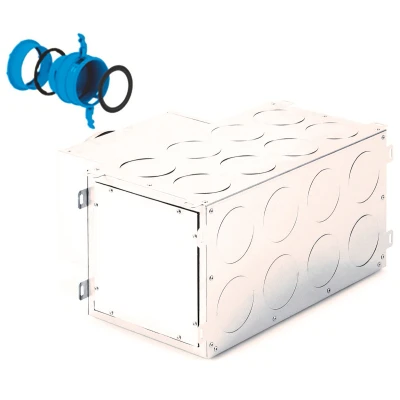

Insulated manifold with air inlet and inspection door

Series 5004
Insulated manifold with interchangeable air inlet and inspection hatch (long side/short side)
Made of galvanised sheet with internal insulation thickness 6mm (λ = 0.0344W / mK).
Air inlet neck that can be coupled to the main body by means of screws on special holes on the 4 sides for perfect sealing
Neck with same depth as DN for better air distribution inside main body
Inspection hatch on long side
Additional inspection hatch on short side, of the same size and with the same hole centre distance as the neck, which makes them perfectly interchangeable
Both straight and perpendicular outlets with closed knockouts to be removed only based on the no. of pipes that will actually be connected
Knockout outlines for 5091M series (not included in the plenum supply) manifold starting valves for connection to the distribution network made with DN75 or DN90 pipe
Protruding, deformable slots on various sides to easily accommodate any installations
MABOX-4 (LxHxD): 240x240x240+150 mm, weight 5.0 Kg
MABOX-6 (LxHxD): 350x240x240+150 mm, weight 6.3 Kg
MABOX-8 (LxHxD): 460x240Lx240+150 mm, weight 8.9 Kg
MABOX-10 (LxHxD): 570x240x240+150 mm, weight 8.9 Kg
MABOX-12(LxHxD): 460x350x350+200 mm, weight 11.9 Kg

Distribution manifolds

Code Model Description Pack Outer Cat.
5004.08.12 MABOX-4 1xDN125, 4x+4x DN≈80 1 1 30.09 ||50040812_LastPrice||
5006.08.16 MABOX-6 1xDN160, 6x+6x DN≈80 1 1 30.09 ||50060816_LastPrice||
5008.08.16 MABOX-8 1xDN160, 8x+8x DN≈80 1 1 30.09 ||50080816_LastPrice||
5010.08.16 MABOX-10 1xDN160 M, 10+10+4x DN≈80C 1 1 30.09 ||50100816_LastPrice||
5012.08.20 MABOX-12 1xDN200, 12x+12x DN≈80 1 1 30.09 ||50120820_LastPrice||

Short side inp kit for 6x - 8x versions

Code Model Description Pack Outer Cat.
5019.01.16 MABOX-68 Short side inp kit for 6x/8x versions 1 1 30.09 ||50190116_LastPrice||
