Monoblock® | Series 35.B

Monoblock®
Module for modular single manifold

Series 35.B

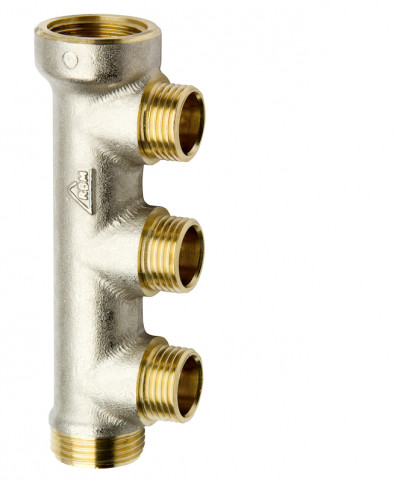

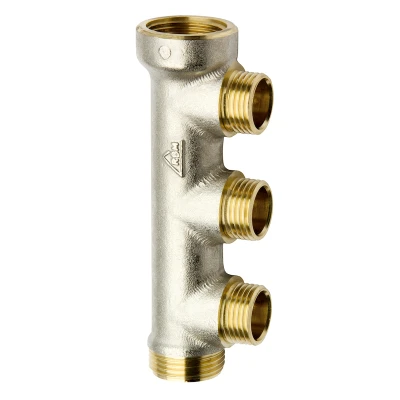

Module for modular simple manifold, G1/2" male junctions
Nickel brass body.
M G1/2" threaded junction connections, centre distance 37 mm, for multilayer pipe fittings.
Threaded in-line connections MF UNI-EN-ISO 228.
Max operating temperature 110 °C
Max operating pressure 10 Bar

Certifications:

Module for modular simple manifold, g1/2” male junctions

Code Measure Ways Pack Outer Cat.
35.05.50 G 3/4" M 2x1/2”M 10 40 04.01 ||00350550_LastPrice||
36.05.50 G 3/4" M 3x1/2”M 10 40 04.01 ||00360550_LastPrice||
35.06.50 G 1" M 2x1/2”M 10 40 04.01 ||00350650_LastPrice||
36.06.50 G 1" M 3x1/2”M 10 40 04.01 ||00360650_LastPrice||

Junctions side thread M G1/2"
