Monoblock®

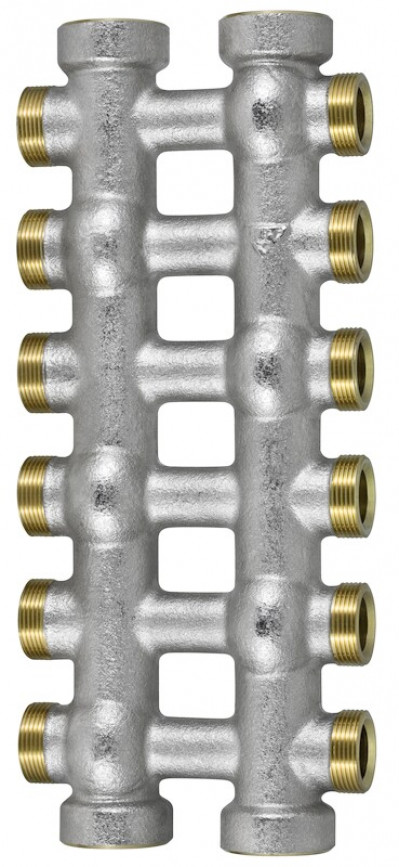

Coplanar double-sided manifold, with in-line connections and two-sided junctions
Series 52
Coplanar double-sided manifold, with in-line connections and two-sided junctions.
| Nickel brass body. |
| Junction connections, centre distance 37 mm threaded M standard RBM for copper, polyethylene and multilayer pipe fittings. |
| In-line connections, threaded FF UNI-EN-ISO 228. |
| Connections centre distance 50mm (manifold 3/4"). |
| Connection centre distance 55mm (1" manifold). |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Double-sided coplanar manifold
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 00520520 | G 3/4" | 2+2 | 1 | 6 | 04.01 | ||00520520_LastPrice|| |
| 00520500 | G 3/4" | 4+4 | 1 | 6 | 04.01 | ||00520500_LastPrice|| |
| 00530500 | G 3/4" | 6+6 | 1 | 6 | 04.01 | ||00530500_LastPrice|| |
| 00540500 | G 3/4" | 8+8 | 1 | 6 | 04.01 | ||00540500_LastPrice|| |
| 00550500 | G 3/4" | 10+10 | 1 | 6 | 04.01 | ||00550500_LastPrice|| |
| 00520620 | G 1" | 2+2 | 1 | 6 | 04.01 | ||00520620_LastPrice|| |
| 00520600 | G 1" | 4+4 | 1 | 6 | 04.01 | ||00520600_LastPrice|| |
| 00530600 | G 1" | 6+6 | 1 | 6 | 04.01 | ||00530600_LastPrice|| |
| 00540600 | G 1" | 8+8 | 1 | 6 | 04.01 | ||00540600_LastPrice|| |
| 00550600 | G 1" | 10+10 | 1 | 6 | 04.01 | ||00550600_LastPrice|| |
Standard RBM thread W24.5x19F junction side
Use fittings with RBM Standard thread for pipe connection.
Please use brackets cod. 128.0X.00 for fixing in plastic boxes.
