Monoblock® | Series 59

Monoblock®

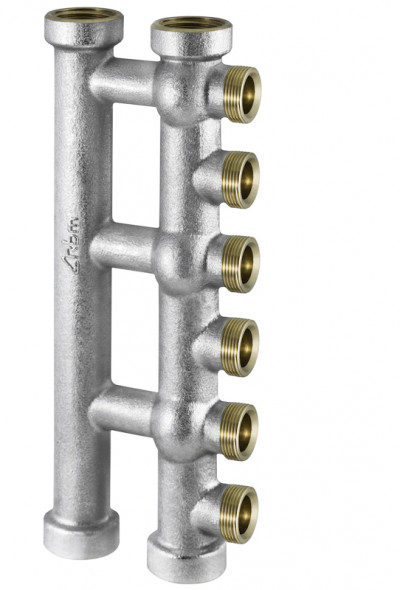

Coplanar unilateral manifold, single, with in-line connections and unilateral junctions

Series 59
Coplanar unilateral manifold, single, with in-line connections and unilateral junctions.
Nickel brass body.
Junction connections, centre distance 37 mm threaded M standard RBM for copper, polyethylene and multilayer pipe fittings.
Threaded FF in-line connections, centre distance 50 mm, UNI-ENISO 228.
Max operating temperature 110 °C
Max operating pressure 10 Bar

Single-sided coplanar manifold

Code Measure Ways Pack Outer Cat.
00590500 G 3/4" 4 1 6 04.01 ||00590500_LastPrice||
00600500 G 3/4" 6 1 6 04.01 ||00600500_LastPrice||
00610500 G 3/4" 8 1 6 04.01 ||00610500_LastPrice||
00620500 G 3/4" 10 1 6 04.01 ||00620500_LastPrice||
00590600 G 1" 4 1 6 04.01 ||00590600_LastPrice||
00600600 G 1" 6 1 6 04.01 ||00600600_LastPrice||
00610600 G 1" 8 1 6 04.01 ||00610600_LastPrice||
00620600 G 1" 10 1 6 04.01 ||00620600_LastPrice||

Standard RBM thread W24.5x19F junction side

Use fittings with RBM Standard thread for pipe connection.

Please use brackets cod. 128.0X.00 for fixing in plastic boxes.
