Multimix S32 | Series 3219

Multimix S32
Hydraulic separator

Series 3219

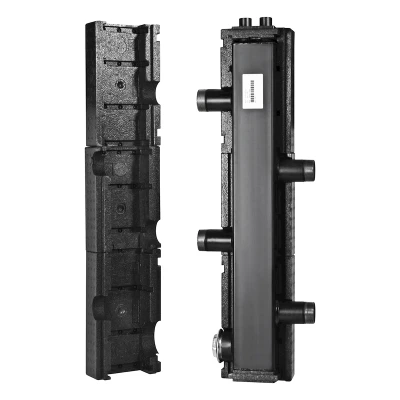

Hydraulic separator MULTIMIX S32.
  • Hydraulic separator with 1"1/2 M threaded connections, body made of galvanised steel (Fe 37.1) colour RAL 9004, complete with polyurethane foam insulation covered with aluminium sheet.
  • Complete with set-up for:
  • Air vent 1/2" F connection (unplugged when supplied - any plug to be provided by the installer);
  • 1/2" F safety unit connection (unplugged when supplied - any plug to be provided by the installer);
  • System sludge drain (2" F hole complete with plug when supplied and positioned on the opposite side of the separator with respect to the manifold);
  • 1"1/4 F threaded blind hole on the bottom for fastening the support foot (foot not included).
  • Qn max 6.5 m³/h
    Maximum operating pressure 6 bar
    Maximum operating temperature 120 °C

    Download

    Hydraulic separator

    Code Measure Pack Outer Cat.
    3219.07.02 DN 40 1 1 01.01 ||32190702_LastPrice||
