Nilo

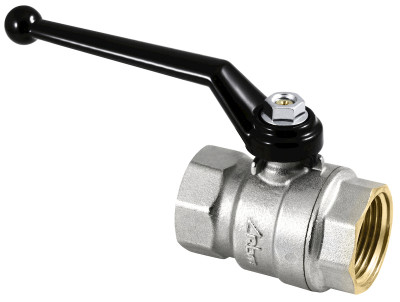

Full bore ball valve with lever handle
Series 2959.A
Full bore ball valve, lever handle operated, FF connections. Suitable for water, water+glycol.
| Nickel-plated brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| ISO 7 (UNI EN 10226) threaded connections. |
| Operating temperature with water -20 ÷ +120 °C (without steam) |
Download
Full bore ball valve, lever handle operated, FF connections
| Code | Size | PN | Box | Carton | Cat. | € |
| 29590390 | 3/8" | 50 | 10 | 40 | 08.01 | ||29590390_LastPrice|| |
| 29590490 | 1/2" | 40 | 10 | 80 | 08.01 | ||29590490_LastPrice|| |
| 29590590 | 3/4" | 40 | 5 | 40 | 08.01 | ||29590590_LastPrice|| |
| 29590690 | 1" | 40 | 4 | 40 | 08.01 | ||29590690_LastPrice|| |
| 29590790 | 1"1/4 | 30 | 4 | 24 | 08.01 | ||29590790_LastPrice|| |
| 29590890 | 1"1/2 | 25 | 2 | 12 | 08.01 | ||29590890_LastPrice|| |
| 29590990 | 2" | 25 | 2 | 8 | 08.01 | ||29590990_LastPrice|| |
ISO 7 (UNI EN 10226) threaded connections.
