Nilo

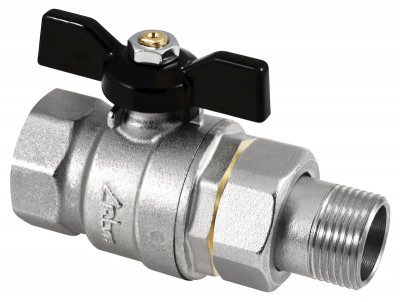

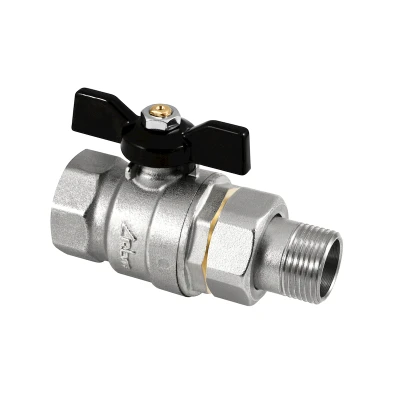

Full bore ball valve with butterfly handle
Series 3346
Full bore ball valve, butterfly handle operated, F connection with M union. Suitable for water, water+ glycol.
| Nickel-plated brass body. |
| Thick chrome plated brass ball. |
| PTFE seal. |
| Elastomer OR gaskets. |
| ISO 7 (UNI EN 10226) threaded connections. |
| Operating temperature with water -20 ÷ +120 °C (without steam) |
Download
Full bore ball valve, butterfly handle operated, F connection with M inlet coupling
| Code | Size A | Size B | PN | Box | Carton | Cat. | € |
| 33460470 | 1/2" | 1/2" | 40 | 15 | 90 | 08.01 | ||33460470_LastPrice|| |
| 33460570 | 3/4" | 3/4" | 40 | 10 | 40 | 08.01 | ||33460570_LastPrice|| |
| 33460670 | 1" | 1" | 40 | 5 | 30 | 08.01 | ||33460670_LastPrice|| |
| 33460770 | 1"1/4 | 1"1/4 | 30 | 4 | 16 | 08.01 | ||33460770_LastPrice|| |
ISO 7 (UNI EN 10226) threaded connections.
