PA-RO

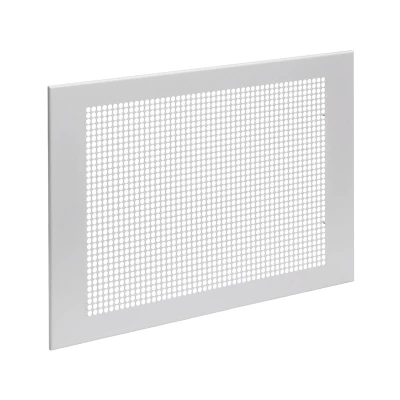

Round hole grating DN=5 mm
Series 5311.C
Round hole grid DN=5 mm with perimeter folds for max rigidity
Quick coupling system with direct coupling by means of special rear pins and spring clips on the front of the 5108.A and 4212 series plenums to guarantee: 0-60mm variable radius to correct any plenum/wall misalignment. Full air flow even also in case of underneath/side connection without affecting the plenum minimum insertion depth.
| Rectangular steel grid with flat, smooth and even single-body front surface. Design with 32 mm perimeter and internal part with DN5 holes for optimal flow distribution over the whole surface. Optimised structure for maximum rigidity. RAL9016 painting with surface treatment for maximum corrosion resistance. |
Download
Perforated room grids
| Code | Model | Description | Box | Carton | Cat. | € |
| 53113626 | PARO-3626 | 366x260 mm, int 300x200 mm, RAL9016 | 1 | 1 | 30.09 | ||53113626_LastPrice|| |
Perni filettati per accoppiamento a bocchette serie 5108 compresi nella fornitura..
Compatibility:
4 x serie 5108 (abbinate 2 superiormente e 2 inferiormente) 1 x serie 4212
