RD25 CONT
Direct booster unit
Series 3234

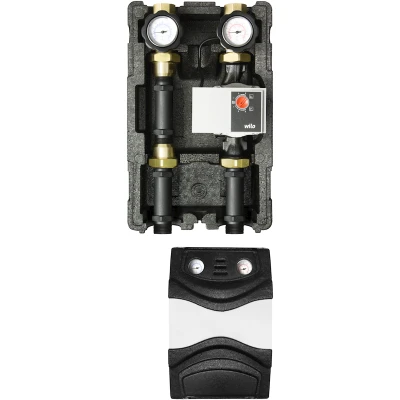

Direct booster unit, set up for heat metering, RD25 CONT.
High temperature unit for heating/cooling systems complete with:
| Nominal diameter: DN25 - 1" |
| Brass ball valves |
| Check valve in acetalic resin (POM) |
| Elastomer gaskets |
| 1" F x 1"1/2 M connections |
| Maximum operating pressure 6 bar |
| Maximum operating temperature 120 °C |
Download
Direct Booster designed for metering purposes
| Code | Measure | Pack | Outer | Cat. | € |
| 32340602 | DN 25 | 1 | 1 | 01.01 | ||32340602_LastPrice|| |
Unit set up for installation on Multimix C32 series 3223 central manifold
