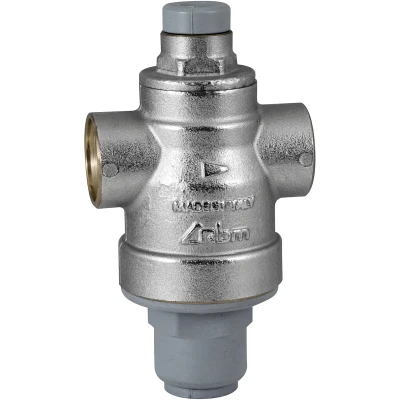

Rinox Due
Adjustable pressure reducing valve, with single stainless steel seat and compensated piston operation
Series 87.A
Riduttore di pressione regolabile con attacchi FF - PN25, a sede unica inox e funzionamento a pistone compensato. Trattamento RBM Act. Idoneo per il convogliamento di acqua.
| Nickel-plated brass body. |
| Stainless steel AISI 303 seat seals. |
| Elastomer seals. |
| Threaded connections FF UNI-EN-ISO 228. |
| F1/4" pressure gauge holder connection. |
| Nominal pressure 25 Bar |
| Max upstream pressure 25 Bar |
| Adjustable downstream pressure 0.5 ÷ 4 Bar (with inlet pressure of 8 Bar) |
| Max operating temperature 80 °C |
| Default presetting 3 Bar |
Download
Certifications:
DHW
Rinox Due. Pressure reducing valve with FF connections - pn 25
| Code | Size | Model | Box | Carton | Cat. | € |
| 00870380 | G 3/8" | RinoxDue | 1 | 20 | 06.01 | ||00870380_LastPrice|| |
| 00870480 | G 1/2" | RinoxDue | 1 | 20 | 06.01 | ||00870480_LastPrice|| |
| 00870580 | G 3/4" | RinoxDue | 1 | 20 | 06.01 | ||00870580_LastPrice|| |
Pre-calibrated.
