Rinox | Series 51.A

Rinox

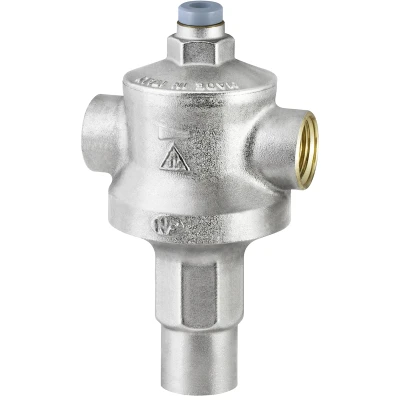

Adjustable compensated pressure reducing valve, diaphragm operated

Series 51.A
Adjustable compensated pressure reducing valve, diaphragm operated, double seat, made of stainless steel, with anti-water hammer function. Suitable for water conveyance.
Nickel brass body.
Stainless steel AISI 303.
Elastomer seals.
Threaded connections FF UNI-EN-ISO 228.
Pressure gauge holder connection F 1/4".
Nominal pressure 40 Bar
Max upstream pressure 25 Bar
Max operating temperature 80 °C

Certifications:

DHW

First reduction pressure reducing valve with FF connections - pn 40

Code Measure Model Pack Outer Cat.
00510495 G 1/2" Rinox 1 6 06.01 ||00510495_LastPrice||
00510595 G 3/4" Rinox 1 6 06.01 ||00510595_LastPrice||
00510695 G 1" Rinox 1 6 06.01 ||00510695_LastPrice||
00510795 G 1"1/4 Rinox 1 4 06.01 ||00510795_LastPrice||
00510895 G 1"1/2 Rinox 1 1 06.01 ||00510895_LastPrice||
00510995 G 2" Rinox 1 1 06.01 ||00510995_LastPrice||

outlet adjustment 6 ÷ 10 Bar

First reduction pressure reducing valve: this reduces upstream pressures near a value of 25 bar in compliance with the reduction ratio recommended by RBM.
