Rinox | Series 51.D

Rinox

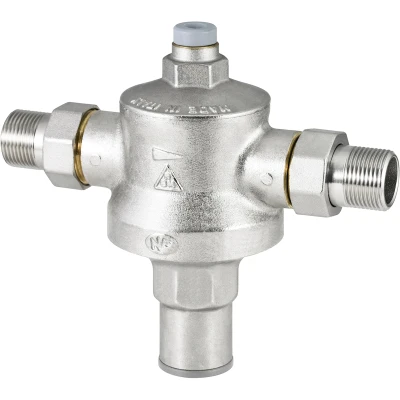

Adjustable compensated pressure reducing valve, diaphragm operated

Series 51.D
Adjustable compensated pressure reducing valve, diaphragm operated, double seat, made of stainless steel, with anti-water hammer function. Suitable for water conveyance.
Nickel brass body.
Stainless steel AISI 303.
Elastomer seals.
Threaded connections MM UNI-EN-ISO 228.
Pressure gauge holder connection F 1/4".
Nominal pressure 40 Bar
Max upstream pressure 25 Bar
Max upstream pressure in compliance with standard NF 16 Bar
Max operating temperature 80 °C
Default presetting 3 Bar (only models with*)

Certifications:

Pressure reducing valve with MM union connections - pn 40

Code Measure Model Pack Outer Cat.
51.04.10 G 1/2" Rinox * 1 6 06.01 ||00510410_LastPrice||
51.05.10 G 3/4" Rinox * 1 6 06.01 ||00510510_LastPrice||
51.06.10 G 1" Rinox * 1 6 06.01 ||00510610_LastPrice||
51.07.10 G 1"1/4 Rinox ** 1 4 06.01 ||00510710_LastPrice||
51.08.10 G 1"1/2 Rinox ** 1 1 06.01 ||00510810_LastPrice||
51.09.10 G 2" Rinox ** 1 1 06.01 ||00510910_LastPrice||

* outlet adjustment 0.8-5.5 Bar.

** outlet adjustment 0.8-7 k Bar.

NF certified for ½" and ¾" sizes only
