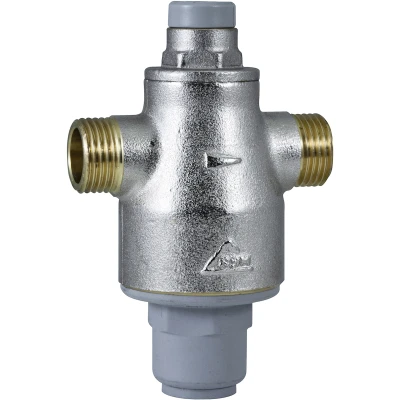

RinoxDue | Series 288

RinoxDue
Adjustable pressure reducing valve with MM - PN25 connections, with single stainless steel seat and compensated piston operation

Series 288
Adjustable pressure reducing valve with MM - PN25 connections, with single stainless steel seat and compensated piston operation. Suitable for water conveyance.
Nickel brass body.
Stainless steel AISI 303 seat seals.
Elastomer seals.
Threaded connections MF UNI-EN-ISO 228.
F1/4" pressure gauge holder connection.
Nominal pressure 25 Bar
Max upstream pressure 25 Bar
Adjustable downstream pressure 0.5 ÷ 4 Bar (with inlet pressure of 8 Bar)
Max operating temperature 80 °C
Default presetting 3 Bar

Certifications:

Pressure reducing valve with MM connections - pn 25

Code Measure Model Pack Outer Cat.
288.04.80 G 1/2" RinoxDue 1 10 06.01 ||02880480_LastPrice||
288.05.80 G 3/4" RinoxDue 1 10 06.01 ||02880580_LastPrice||
