RM MIX
Mixing unit
Series 3199

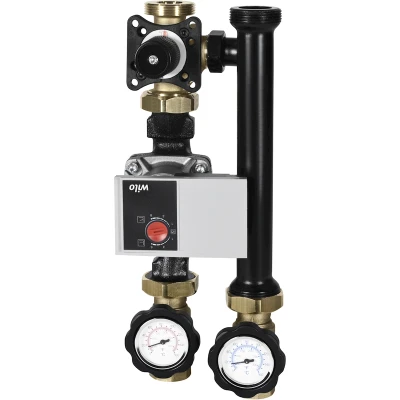

RM MIX mixing unit.
Mixed unit designed for shifting temperature for heating/cooling systems, complete with: 3-way mixing valve (Actuator to couple separately depending on electronic temperature control chosen - see range of actuators); High efficiency circulator model Wilo Yonos Para 25/6; 2 shut-off ball valves on system supply and return with built-in thermometer - 1" F connection; Check valve built into system return ball valve, can be excluded for counter washing.
| Maximum operating pressure 6 bar |
| Maximum operating temperature 110 °C |
| Minimum cooling temperature 7 °C |
Download
Climate Booster
| Code | Size | Box | Carton | Cat. | € |
| 31990602 | DN 25 | 1 | 1 | 01.01 | ||31990602_LastPrice|| |
Optional actuator series 3232 and 3233 to be ordered separately depending on the electronic temperature control chosen.
