RM25 CONT
Climatic booster unit
Series 3236

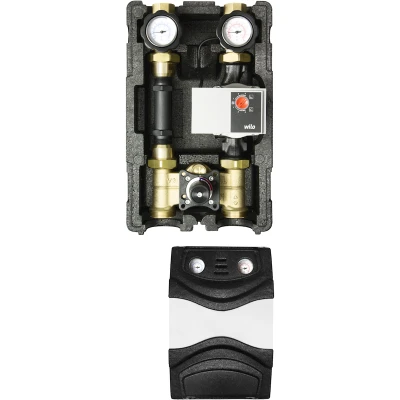

Climatic booster unit, set up for heat metering.
Mixing unit with shifting temperature or heating/cooling systems, complete with: High efficiency circulator, model Wilo Yonos Para 25/1-6; 3-way mixer valve (Actuator to couple separately according to temperature control chosen - see range of actuators); 1" polymer template on system - L 130 mm return line for future calorimeter installation with nQ 2.5 m³/h / Microclima HC25 model (various models available); Delivery probe holder well for calorimeter; Insulation in black EPP (density 40 g/l).
| Nominal diameter: DN25 - 1" |
| Brass ball valves |
| Acetal resin (POM) check valve |
| Elastomer gaskets |
| 1" F x 1"1/2 M connections |
| Maximum operating pressure 6 bar |
| Maximum operating temperature 120 °C |
Download
Climate booster
| Code | Pack | Outer | Cat. | € |
| 32360602 | 1 | 1 | 01.01 | ||32360602_LastPrice|| |
Unit set up for installation on Multimix C32 series 3223 central manifold
