RO-BOX | Series 5108.A

RO-BOX

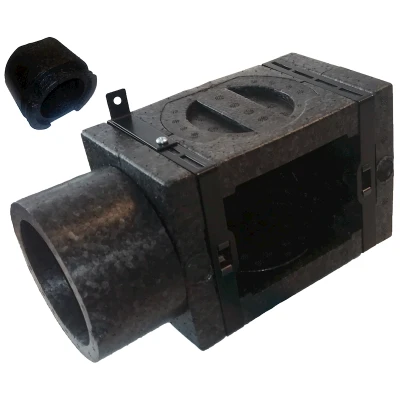

Sanitised, insulated EPP universal modular nozzle plenum

Series 5108.A
Sanitised, insulated EPP universal modular nozzle plenum
Sanitised material with perfectly smooth internal surface and excellent insulation (λ=0.0420W/mK).
Dimensions (LXHXD): 172x120x100mm
Exclusive, simple plug-in design of couplings with o-ring seal on the pipe side and through internal threads on the plenum side
Option of adjusting the flow rate by inserting FLOS series matching limiters
Option of coupling several modules together to obtain double/triple/quadruple nozzles
Open outlets to be closed on site with the special plugs supplied according to the desired connection configuration:
- 1x DN 75/90mm on the back
- 1x DN 75/90mm lh side perpendicular
- 1x DN 75/90mm rh side perpendicular
- 1x DN 75/90mm bottom perpendicular
  • 2x black painted collars with clips for coupling to the rear pins on 5311.A-B-C-D and 5312.A-B-C-D grids
  • 2x metal folding eyelets on the bottom for anchoring to masonry walls as well as front ones for anchoring to plasterboard walls
  • 1x adapter for DN 75mm pipe
  • 1x adapter for DN 90mm pipe
  • 1x M/M joint for coupling multiple nozzles
  • 4x plugs to close unused outlets
  • 1x G3 filter on special angled support bases
  • 1x sealing O-ring for DN 75mm pipe
  • 1x sealing O-ring for DN 90mm pipe
  • EPP insulated universal plenum for grids

    Code Model Description Pack Outer Cat.
    5108.19.14 ROBOX-80 DN≈80, DN75/90F, EPP 1 1 30.09 ||51081914_LastPrice||
