Sep MG Compact
Inspectable hydraulic separator
Series 3813

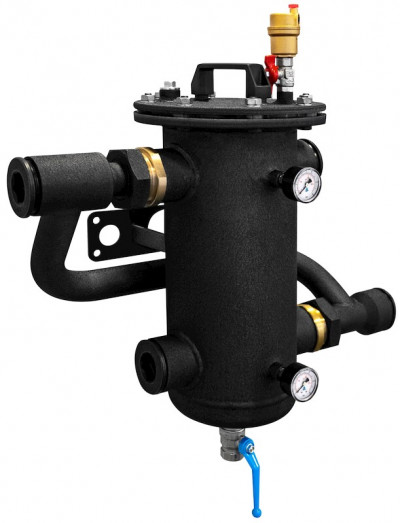

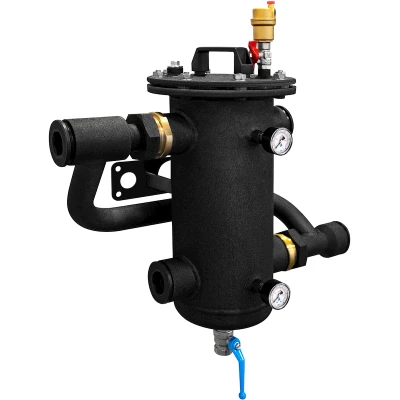

Inspectable hydraulic separator with compact magnetic sludge remover filter for thermo-cooling control units.
| Main body in painted steel on the outside. |
| Steel cover painted on the outside. |
| Ball valve body and air vent valve in brass. |
| Elastomer seals. |
| AISI stainless steel filter basket. |
| Threaded process connections UNI EN ISO 228. |
| Pressure class PN10 |
| Max operating temperature 95 °C |
| Neodymium magnet |
| Degree of filtration 100 μm |
Download
Features:
Inspectable hydraulic separator with compact magnetic sludge remover filter for thermo-cooling control units
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 38130900 | G 2" | 87,00 | 1 | 1 | 01.01 | ||38130900_LastPrice|| |
Hydraulic separation.
Direct magnetic filtration.
Inspectionability.
Degassing.
Sludge removal.
Pressure gauges not supplied, must be ordered separately, code 2549.005 for scale 0-4 bar - code 2579.005 for scale 0-10 bar
