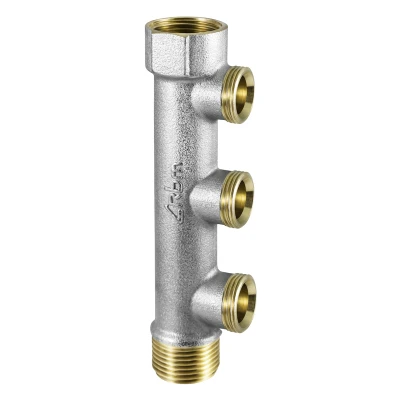

Single modular manifold
Series 100
Single modular manifold, with in-line connections and one-way lateral junctions.
| Nickel brass body. |
| Euroconus M3/4" threaded junction connections, centre distance 50 mm, for copper, polyethylene and multilayer pipe fittings. |
| Threaded in-line connections MF UNI-EN-ISO 228. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Module for modular single manifold
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 01000650 | G 1" | 2x3/4" | 10 | 10 | 04.01 | ||01000650_LastPrice|| |
| 01010650 | G 1" | 3x3/4" | 8 | 8 | 04.01 | ||01010650_LastPrice|| |
| 01020650 | G 1" | 4x3/4" | 3 | 3 | 04.01 | ||01020650_LastPrice|| |
EUROCONUS thread G3/4" UNI-EN-ISO 228
Use fittings with Euroconus G3/4" thread for pipe connection.
Use brackets cod. 219.0X.00 for metal case fastening.
