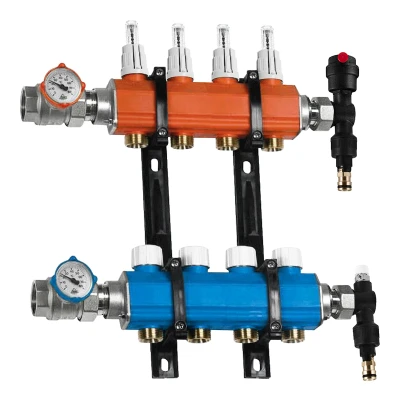

Kit for anti-condensation polymer compact manifolds
Series 1002.C
Kit for modular manifolds in anti-condensation polymer
| Each kit contains: |
| n° 1 multi-way manifold unit complete with flow meters with lockshield and flow indicator function; |
| n° 1 multi-way manifold unit complete with valves with thermostatic option with hand wheel; |
| 1 pair of plastic brackets for fixing manifolds; |
| n° 2 1" ball valves with built-in thermometer 0÷80 °C; |
| n° 2 union fittings; |
| n° 1 automatic 1" air / water discharge terminal unit. |
| n° 1 manual 1" air / water discharge terminal unit. |
| Temperature range 5÷80 °C |
| Max. operating pressure 8 Bar |
Download
Kit for anti-condensation polymer compact manifolds
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 10020640 | 1" | 2+2 | 1 | 1 | 30.01 | ||10020640_LastPrice|| |
| 10030640 | 1" | 3+3 | 1 | 1 | 30.01 | ||10030640_LastPrice|| |
| 10040640 | 1" | 4+4 | 1 | 1 | 30.01 | ||10040640_LastPrice|| |
| 10050640 | 1" | 5+5 | 1 | 1 | 30.01 | ||10050640_LastPrice|| |
| 10060640 | 1" | 6+6 | 1 | 1 | 30.01 | ||10060640_LastPrice|| |
| 10070640 | 1" | 7+7 | 1 | 1 | 30.01 | ||10070640_LastPrice|| |
| 10080640 | 1" | 8+8 | 1 | 1 | 30.01 | ||10080640_LastPrice|| |
| 10090640 | 1" | 9+9 | 1 | 1 | 30.01 | ||10090640_LastPrice|| |
| 10100640 | 1" | 10+10 | 1 | 1 | 30.01 | ||10100640_LastPrice|| |
| 10110640 | 1" | 11+11 | 1 | 1 | 30.01 | ||10110640_LastPrice|| |
| 10120640 | 1" | 12+12 | 1 | 1 | 30.01 | ||10120640_LastPrice|| |
| 10130640 | 1" | 13+13 | 1 | 1 | 30.01 | ||10130640_LastPrice|| |
Centre distance connections through 50mm distribution -EUROCONUS G3/4" UNI-EN-ISO 228 threading
Supply indicator flow meters on each supply way.
Manifolds with internal cavities with thermal insulation and anti-condensation functions.
Use RBM fittings with G3/4" Euroconus thread for pipe connection (217M.A and 224M.A series)
