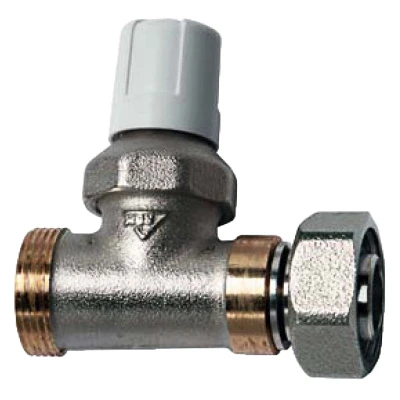

Simple adjustment straight shut-off lockshield valve for branch circuits
Series 106
Simple adjustment straight shut-off lockshield valve for branch circuits from modular manifolds (standard RBM connections).
| Nickel-plated brass body. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| Rotary connection to manifold, threaded F standard RBM with seal. |
| Threaded M standard RBM connection for copper, polyethylene and multilayer pipe fittings. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Lockshield regulating valve
| Code | Size | Box | Carton | Cat. | € |
| 01060000 | RBM | 10 | 10 | 04.01 | ||01060000_LastPrice|| |
RBM Standard Thread (W24,5x19F)
