Turbine volumetric meter
Series 1092

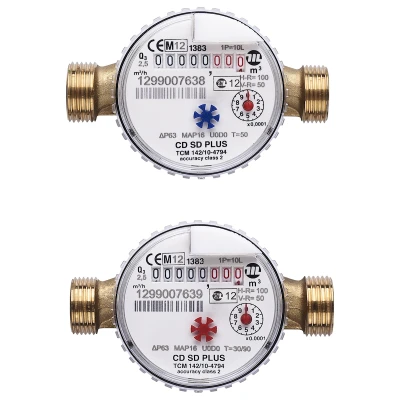

Turbine volumetric meter, domestic water, without impulse-sender.
The turbine volumetric meter is single-jet, dry quadrant type; it is supplied to meter the volume of the cold domestic water used. This version comes without impulse-sender device.
| Printed brass case, protected with nickel galvanic treatment |
| Clock device inserted in a hermetically sealed vacuum case |
| Double mounting by means of anti-magnetic stainless steel pins; it allows the turbine to rotate in all flow rate and installation conditions |
| Protection against the action of external magnets |
| Adequate surface inlet filter |
| Installation on HORIZONTAL and VERTICAL pipes |
| Operating temperature max 50 °C (DCW) - 90 °C (DHW) |
| Nominal pressure (PN) 16 Bar |
Download
Certifications:
Certified for use with drinking water, in accordance with It. Ministerial Decree 174/2004
Features:
DCW domestic cold water turbine volumetric meter (cannot be remotely controlled)
| Code | Model | Measure | L (mm) | Q3 (m³/h) | Pack | Outer | Cat. | € |
| 10920500 | VC15 | 3/4" | 80 | 2,5 | 1 | 1 | 60.01 | ||10920500_LastPrice|| |
| 10920532 | VC15 | 3/4" | 110 | 2,5 | 1 | 1 | 60.01 | ||10920532_LastPrice|| |
| 10920602 | VC25 | 1" | - | 4 | 1 | 1 | 60.01 | ||10920602_LastPrice|| |
* L = 80 mm
** L = 110 mm
DCW domestic hot water turbine volumetric meter (cannot be remotely controlled)
| Code | Model | Measure | L (mm) | Q3 (m³/h) | Pack | Outer | Cat. | € |
| 10920510 | VH15 | 3/4" | 80 | 2,5 | 1 | 1 | 60.01 | ||10920510_LastPrice|| |
| 10920522 | VH15 | 3/4" | 110 | 2,5 | 1 | 1 | 60.01 | ||10920522_LastPrice|| |
| 10920612 | VH25 | 1" | - | 4 | 1 | 1 | 60.01 | ||10920612_LastPrice|| |
* L = 80 mm
** L = 110 mm
Ready for installing an impulse-sender device code 2258.00.02
