Series 1093.A

Turbine volumetric meter

Series 1093.A
Turbine volumetric meter.
Every size is available in two versions:
equipped with impulse-sender (can be remotely controlled);
without impulse-sender (cannot be remotely controlled);
Operating temperature max 50 °C (mod. VC) / 90 °C (mod. VH)
Nominal pressure (PN) 16 Bar
Q1: 25 l/h (3/4") - 40 l/h (1")
Q3: 2.5 m³/h (3/4") - 4.0 m³/h (1")
R (Q3/Q1) ≤ 80 H - ≤ 40 V
nQ: 1,500 l/h (3/4") - 2.500 l/h (1")
U0 - D0
Impulse factor 10 litres/impulse

Certifications:

Certified for use with drinking water, in accordance with It. Ministerial Decree 174/2004

Features:

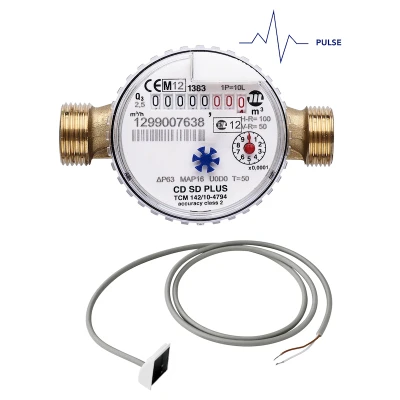

VC/VH LI domestic water meter equipped with impulse-sender designed for remote reading

Code Measure Version Pack Outer Cat.
1093.05.20 3/4" VC15 Domestic COLD Water LI 1 1 03.03 ||10930520_LastPrice||
1093.06.00 1" VC25 Domestic COLD Water LI 1 10 03.03 ||10930600_LastPrice||
997.05.00 3/4" VH15 Domestic HOT Water LI 1 10 03.03 ||09970500_LastPrice||
997.06.00 1" VH25 Domestic HOT Water LI 1 10 03.03 ||09970600_LastPrice||

Versions installed as standard in the DHW and DCW lines with meter.
