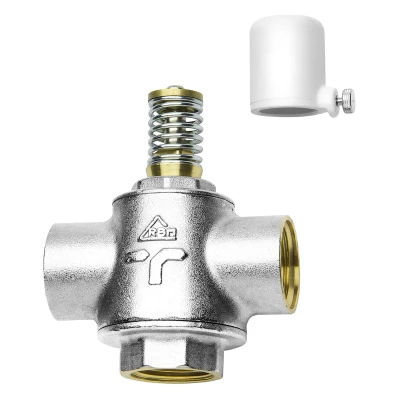

3-way motorizable zone valve
Series 113
3-way motorised zone valve. Normally Closed on straight way.
| Nickel brass body. |
| Obturator and seal in elastomer. |
| Elastomer rod seals. |
| Silicon steel springs. |
| Anti-water hammer function. |
| Cap for manual opening in ABS. |
| Threaded connections FF UNI-EN-ISO 228. |
| Max operating temperature +95 °C |
| Max operating pressure 10 Bar |
| Max differential pressure 1 Bar |
Download
3-way motorizable zone valve
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 113.04.70 | G 1/2" | 2,70 / 3,30 * | 1 | 6 | 02.01 | ||01130470_LastPrice|| |
| 113.05.70 | G 3/4" | 4,70 / 5,00 * | 1 | 6 | 02.01 | ||01130570_LastPrice|| |
| 113.06.70 | G 1" | 6,00 / 7,00 * | 1 | 6 | 02.01 | ||01130670_LastPrice|| |
* Kv straight bore / kv by-pass
