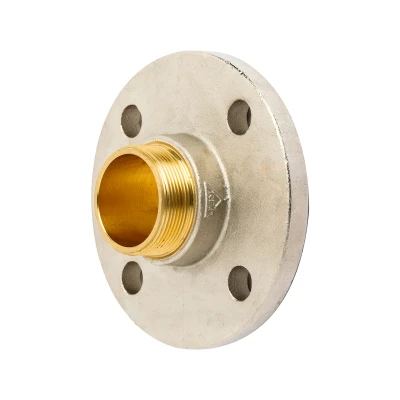

Series 120

PN16 Threaded flange suited for connecting threaded reducers, filters and ball valves to flange distribution networks.

Series 120
PN16 Threaded flange suited for connecting threaded reducers, filters and ball valves to flange distribution networks.
Nickel brass body.
Threaded connection M UNI-EN-ISO 228.
Flanged connection suited for coupling with counter flange UNI EN 1092-1.
Max operating temperature 150 °C

Certifications:

Threaded flange - pn 16

Code Size A Size B Pack Outer Cat.
120.09.00 2" DN 50 2 2 09.01 ||01200900_LastPrice||
120.10.00 2"1/2 DN 65 1 1 09.01 ||01201000_LastPrice||
120.11.00 3" DN 80 1 1 09.01 ||01201100_LastPrice||
120.13.00 4" DN 100 1 1 09.01 ||01201300_LastPrice||
