Compression fitting for polyethylene pipe.
Series 123

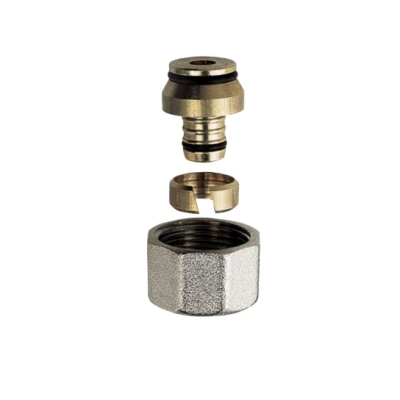

Compression fitting for polyethylene pipe.
| Brass ogive. |
| Nickel plated brass nut. |
| Elastomer seal ring. |
| Euroconus F G3/4" threaded connection. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#s# #s#
#s# #s#
Certificazione CSTB (QB) valida solo in abbinamento a tubo RBM KILMA-FLEX PE-RT certificato CSTB, serie 988.
Polyethylene pipe fitting
| Code | Size | Box | Carton | Cat. | € |
| 01231200 | 12x1,1 | 10 | 100 | 09.01 | ||01231200_LastPrice|| |
| 01231600 | 16x1,5 | 10 | 100 | 09.01 | ||01231600_LastPrice|| |
| 01232000 | 20x1,9 | 10 | 100 | 09.01 | ||01232000_LastPrice|| |
Euroconus G 3/4" thread UNI-EN-ISO 228
Size: Outside Ø x pipe thickness
