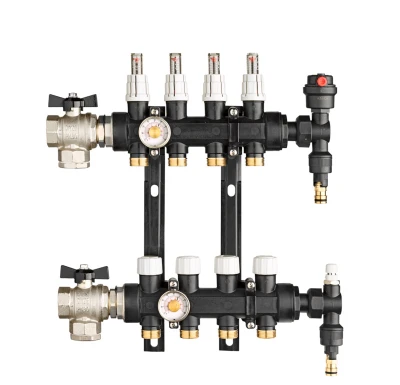

Polymer compact manifold kit
Series 1410.F
Compact polymer manifolds kit.
| Each kit contains: |
| n° 1 multi-way manifold unit complete with flow meters with lockshield and flow indicator function; |
| n° 1 multi-way manifold unit complete with valves with thermostatic option with hand wheel; |
| 1 pair of plastic brackets for fixing manifolds; |
| n° 2 1" ball valves with built-in thermometer 0÷80 °C; |
| n° 2 union fittings; |
| 1 x 1" air / water automatic discharge terminal unit; |
| n° 1 manual 1" air / water discharge terminal unit. |
| Temperature range 5÷80 °C |
| Max. operating pressure 8 Bar |
Download
Polymer compact manifold kit
| Code | Measure | Ways | Pack | Cat. | € |
| 14100611 | 1" | 2+2 | 1 | 30.01 | ||14100611_LastPrice|| |
| 14110611 | 1" | 3+3 | 1 | 30.01 | ||14110611_LastPrice|| |
| 14120611 | 1" | 4+4 | 1 | 30.01 | ||14120611_LastPrice|| |
| 14130611 | 1" | 4+4 | 1 | 30.01 | ||14130611_LastPrice|| |
| 14140611 | 1" | 5+5 | 1 | 30.01 | ||14140611_LastPrice|| |
| 14150611 | 1" | 6+6 | 1 | 30.01 | ||14150611_LastPrice|| |
| 14160611 | 1" | 7+7 | 1 | 30.01 | ||14160611_LastPrice|| |
| 14170611 | 1" | 8+8 | 1 | 30.01 | ||14170611_LastPrice|| |
| 14180611 | 1" | 9+9 | 1 | 30.01 | ||14180611_LastPrice|| |
| 14190611 | 1" | 10+10 | 1 | 30.01 | ||14190611_LastPrice|| |
Centre distance connections through 50mm distribution -EUROCONUS G3/4" UNI-EN-ISO 228 threading
Manifold kit can be inserted in walls constructed in 8 cm box, plastered.
Flow rate indicator flow meters on each supply way, air vent valves. Loose packaged components.
Use Euroconus fittings with G3/4" thread (see page
