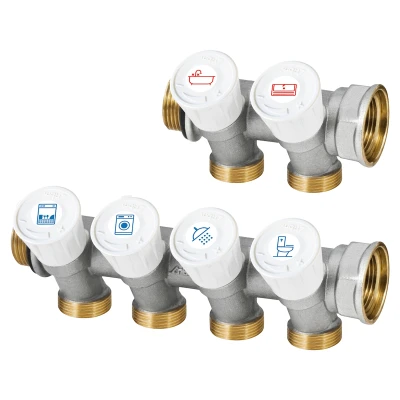

Single modular manifold with in-line connections
Series 171
Single modular manifold with in-line connections, used for domestic water circuit distribution. Unilateral junctions complete with built-in micrometric shut-off valves.
| Nickel-plated brass body. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| RBM standard threaded M junction connections, centre distance 37 mm, for copper, polyethylene and multilayer pipe fittings, or M G1/2" (according to version). |
| In-line threaded connections MF UNI-EN-ISO 228. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Modular manifold, Standard RBM connections
| Code | Size | Ways | Box | Carton | Cat. | € |
| 01710500 | G 3/4" | 2 | 5 | 5 | 05.01 | ||01710500_LastPrice|| |
| 01720500 | G 3/4" | 3 | 5 | 5 | 05.01 | ||01720500_LastPrice|| |
| 13300500 | G 3/4" | 4 | 5 | 5 | 05.01 | ||13300500_LastPrice|| |
| 01710600 | G 1" | 2 | 5 | 5 | 05.01 | ||01710600_LastPrice|| |
| 01720600 | G 1" | 3 | 5 | 5 | 05.01 | ||01720600_LastPrice|| |
| 13300600 | G 1" | 4 | 5 | 5 | 05.01 | ||13300600_LastPrice|| |
Standard RBM thread W24.5x19F junction side
Modular domestic water manifold, G 1/2" connections
| Code | Size | Ways | Box | Carton | Cat. | € |
| 27930550 | G 3/4" | 2 | 5 | 5 | 05.01 | ||27930550_LastPrice|| |
| 27940550 | G 3/4" | 3 | 5 | 5 | 05.01 | ||27940550_LastPrice|| |
| 27950550 | G 3/4" | 4 | 5 | 5 | 05.01 | ||27950550_LastPrice|| |
| 27930650 | G 1" | 2 | 5 | 5 | 05.01 | ||27930650_LastPrice|| |
| 27940650 | G 1" | 3 | 5 | 5 | 05.01 | ||27940650_LastPrice|| |
| 27950650 | G 1" | 4 | 5 | 5 | 05.01 | ||27950650_LastPrice|| |
Thread M G 1/2" junctions side
Use fittings with RBM standard thread or G 1/2" thread series 2796 (see page
O.R. seal manifold.
