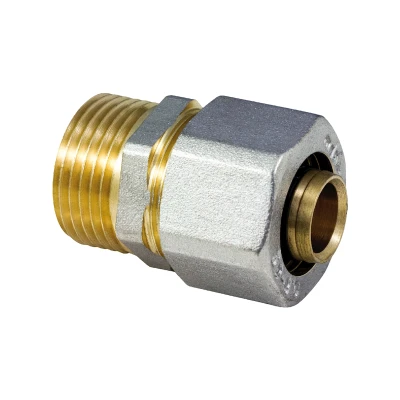

Straight compression fittings for multilayer pipe - male gas connection
Series 1928
Compression fittings for straight multilayer pipe - male gas connection
Nickel plated brass body and nut. |
Brass pipe clip ring nut. |
Elastomer gaskets. |
Max operating temperature 95 °C |
Max operating pressure 10 Bar |
Compression fittings for straight multilayer pipe - male gas connection
Code | Size A | Size B | Pack | Outer | Cat. | € |
1928.16.02 | 16x2 | 1/2" M | 10 | 300 | 10.02 | ||19281602_LastPrice|| |
1928.16.12 | 16x2 | 3/4" M | 10 | 160 | 10.02 | ||19281612_LastPrice|| |
1928.18.02 | 18x2 | 1/2" M | 10 | 160 | 10.02 | ||19281802_LastPrice|| |
1928.18.12 | 18x2 | 3/4" M | 10 | 160 | 10.02 | ||19281812_LastPrice|| |
1928.20.02 | 20x2 | 1/2" M | 10 | 150 | 10.02 | ||19282002_LastPrice|| |
1928.20.12 | 20x2 | 3/4" M | 10 | 150 | 10.02 | ||19282012_LastPrice|| |
1928.26.12 | 26x3 | 3/4" M | 5 | 80 | 10.02 | ||19282612_LastPrice|| |
1928.26.22 | 26x3 | 1" M | 5 | 80 | 10.02 | ||19282622_LastPrice|| |
1928.32.22 | 32x3 | 1" M | 5 | 50 | 10.02 | ||19283222_LastPrice|| |
Size A: Outside Ø x pipe thickness
Size B: thread UNI-EN-ISO 228
