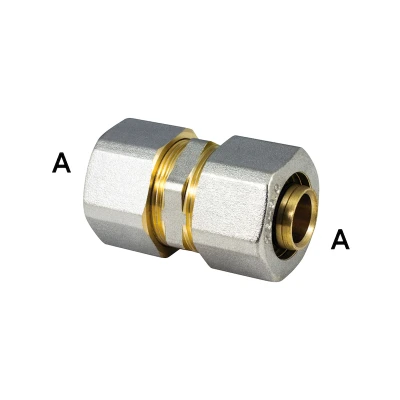

Straight compression fittings for multilayer pipe - intermediate
Series 1930
Compression fittings for multilayer straight - intermediate pipe
| Nickel plated brass body and nut. |
| Brass pipe clip ring nut. |
| Elastomer gaskets. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
Compression fittings for multilayer straight - intermediate pipe
| Code | Size A | Pack | Outer | Cat. | € |
| 1930.16.02 | 16x2 | 10 | 180 | 10.02 | ||19301602_LastPrice|| |
| 1930.18.02 | 18x2 | 10 | 150 | 10.02 | ||19301802_LastPrice|| |
| 1930.20.02 | 20x2 | 10 | 120 | 10.02 | ||19302002_LastPrice|| |
| 1930.26.02 | 26x3 | 5 | 75 | 10.02 | ||19302602_LastPrice|| |
| 1930.32.02 | 32x3 | 5 | 35 | 10.02 | ||19303202_LastPrice|| |
Size A: Outside Ø x pipe thickness
