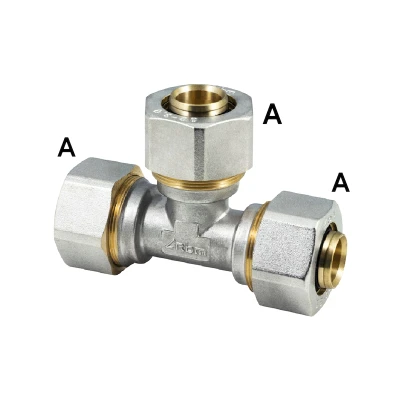

Tee compression fittings for multilayer pipe - intermediate
Series 1931
Compression fittings for T-shaped- intermediate multilayer pipe
Nickel plated brass body and nut. |
Brass pipe clip ring nut. |
Elastomer gaskets. |
Max operating temperature 95 °C |
Max operating pressure 10 Bar |
Download
Compression fittings for T-shaped- intermediate multilayer pipe
Code | Size A | Pack | Outer | Cat. | € |
1931.16.02 | 16x2 | 10 | 100 | 10.02 | ||19311602_LastPrice|| |
1931.18.02 | 18x2 | 10 | 80 | 10.02 | ||19311802_LastPrice|| |
1931.20.02 | 20x2 | 5 | 70 | 10.02 | ||19312002_LastPrice|| |
1931.26.02 | 26x3 | 3 | 30 | 10.02 | ||19312602_LastPrice|| |
1931.32.02 | 32x3 | 2 | 16 | 10.02 | ||19313202_LastPrice|| |
Size A: Outside Ø x pipe thickness
