Series 1932

Tee compression fittings for multilayer pipe - central female gas connection

Series 1932
Compression fittings for T-shaped multilayer pipe - central female gas connection
Nickel plated brass body and nut.
Brass pipe clip ring nut.
Elastomer gaskets.
Max operating temperature 95 °C
Max operating pressure 10 Bar

Certifications:

Compression fittings for T-shaped multilayer pipe - central female gas connection

Code Size A Size B Pack Outer Cat.
1932.16.02 16x2 1/2" F 10 100 10.02 ||19321602_LastPrice||
1932.16.12 16x2 3/4" F 5 50 10.02 ||19321612_LastPrice||
1932.18.02 18x2 1/2" F 10 80 10.02 ||19321802_LastPrice||
1932.18.12 18x2 3/4" F 5 50 10.02 ||19321812_LastPrice||
1932.20.02 20x2 1/2" F 5 60 10.02 ||19322002_LastPrice||
1932.20.12 20x2 3/4" F 5 50 10.02 ||19322012_LastPrice||
1932.26.12 26x3 3/4" F 3 30 10.02 ||19322612_LastPrice||
1932.26.22 26x3 1" F 3 30 10.02 ||19322622_LastPrice||
1932.32.22 32x3 1" F 2 18 10.02 ||19323222_LastPrice||

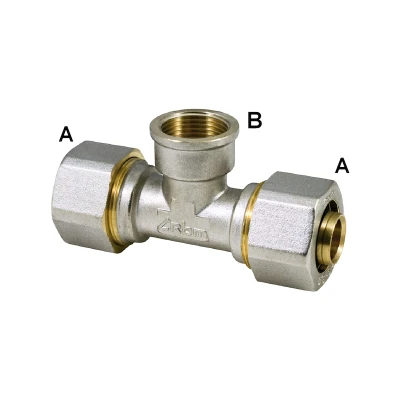

Size A: Outside Ø x pipe thickness

Size B: thread UNI-EN-ISO 228
