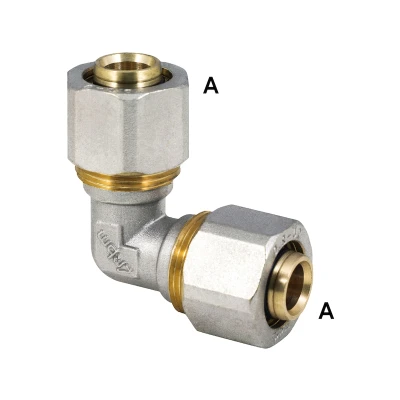

Angled compression fittings for multilayer pipe - intermediate
Series 1934
Compression fittings for angle - intermediate multilayer pipe
| Nickel plated brass body and nut. |
| Brass pipe clip ring nut. |
| Elastomer gaskets. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
Compression fittings for angle - intermediate multilayer pipe
| Code | Size A | Box | Carton | Cat. | € |
| 19341602 | 16x2 | 10 | 160 | 10.02 | ||19341602_LastPrice|| |
| 19341802 | 18x2 | 10 | 100 | 10.02 | ||19341802_LastPrice|| |
| 19342002 | 20x2 | 10 | 100 | 10.02 | ||19342002_LastPrice|| |
| 19342602 | 26x3 | 5 | 50 | 10.02 | ||19342602_LastPrice|| |
| 19343202 | 32x3 | 5 | 25 | 10.02 | ||19343202_LastPrice|| |
Size A: Outside Ø x pipe thickness
Suitable for polyethylene and multilayer pipe.
