Series 1935

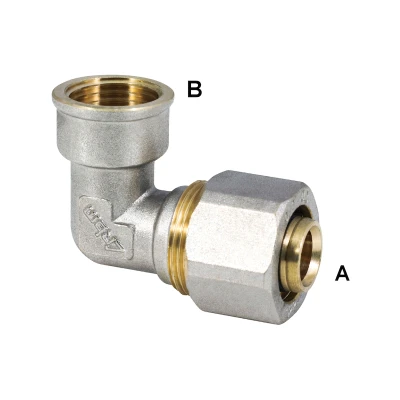

Angled compression fittings for multilayer pipe - female gas connection

Series 1935
Compression fittings for angle multilayer pipe - female gas connection
Nickel plated brass body and nut.
Brass pipe clip ring nut.
Elastomer gaskets.
Max operating temperature 95 °C
Max operating pressure 10 Bar

Certifications:

Compression fittings for angle multilayer pipe - female gas connection

Code Size A Size B Pack Outer Cat.
1935.16.02 16x2 1/2" F 10 160 10.02 ||19351602_LastPrice||
1935.16.12 16x2 3/4" F 10 120 10.02 ||19351612_LastPrice||
1935.18.02 18x2 1/2" F 10 120 10.02 ||19351802_LastPrice||
1935.18.12 18x2 3/4" F 10 100 10.02 ||19351812_LastPrice||
1935.20.02 20x2 1/2" F 10 120 10.02 ||19352002_LastPrice||
1935.20.12 20x2 3/4" F 10 100 10.02 ||19352012_LastPrice||
1935.26.12 26x3 3/4" F 5 60 10.02 ||19352612_LastPrice||
1935.26.22 26x3 1" F 5 50 10.02 ||19352622_LastPrice||
1935.32.22 32x3 1" F 5 25 10.02 ||19353222_LastPrice||

Size A: Outside Ø x pipe thickness

Size B: thread UNI-EN-ISO 228
