Series 1937

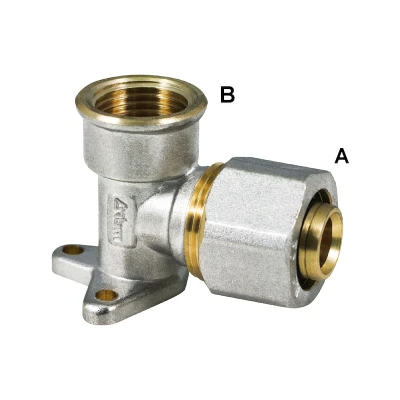

Flanged elbow compression fittings for multilayer pipe - female gas connection

Series 1937
Compression fittings for flanged elbow multilayer pipe - female gas connection
Nickel plated brass body and nut.
Brass pipe clip ring nut.
Elastomer gaskets.
Max operating temperature 95 °C
Max operating pressure 10 Bar

Certifications:

Compression fittings for flanged elbow multilayer pipe - female gas connection

Code Size A Size B Pack Outer Cat.
1937.16.02 16x2 1/2" F 10 120 10.02 ||19371602_LastPrice||
1937.18.02 18x2 1/2" F 10 100 10.02 ||19371802_LastPrice||
1937.20.02 20x2 1/2" F 10 100 10.02 ||19372002_LastPrice||

Size A: Outside Ø x pipe thickness

Size B: thread UNI-EN-ISO 228
