Series 1955

Press fitting for Tita-gas multilayer pipe with gas thread Euroconus seal

Series 1955

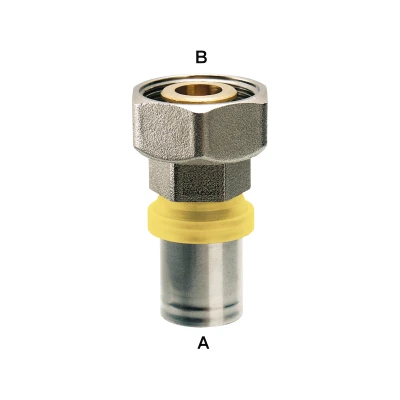

Press fitting for gas for multilayer pipe - rotary nut - Euroconus seal gas thread

Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344

Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants

Fitting compatible with series TH clamps.
Externally nickel-plated brass body
HNBR seals (complying with UNI EN 682)
Stainless steel pipe clamping bush
Dielectric pipe clamp cover in PE
Euroconus threaded connection G3/4" UNI-EN-ISO 228
Max operating pressure 0.5 Bar

Certifications:

Certified system IIP UNI

Press fitting for gas for multilayer pipe - rotary nut - Euroconus seal gas thread

Code Size A Size B Pack Outer Cat.
1955.16.30 16x2 Euroconus 10 160 10.02 ||19551630_LastPrice||
1955.20.30 20x2 Euroconus 10 160 10.02 ||19552030_LastPrice||
1955.26.30 26x3 Euroconus 10 120 10.02 ||19552630_LastPrice||

Size A: Outside Ø x pipe thickness.
