Series 1959

Straight press fitting for Tita-gas multilayer pipe - male connection

Series 1959

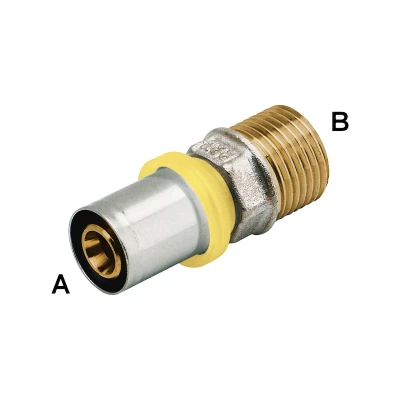

Press fitting for gas for multilayer pipe - straight - male connection

Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344

Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants

Fitting compatible with series TH clamps.
Externally nickel-plated brass body
HNBR seals (complying with UNI EN 682)
Stainless steel pipe clamping bush
Dielectric pipe clamp cover in PE
Straight threaded connection M UNI-EN-ISO 228
Max operating pressure 0.5 Bar

Certifications:

Certified system IIP UNI

Press fitting for gas for multilayer pipe - straight - male connection

Code Size A Size B Pack Outer Cat.
1959.16.20 16x2 1/2" M 10 240 10.02 ||19591620_LastPrice||
1959.16.30 16x2 3/4" M 10 240 10.02 ||19591630_LastPrice||
1959.20.20 20x2 1/2" M 10 200 10.02 ||19592020_LastPrice||
1959.20.30 20x2 3/4" M 10 200 10.02 ||19592030_LastPrice||
1959.26.30 26x3 3/4" M 10 120 10.02 ||19592630_LastPrice||
1959.32.40 32x3 1" M 10 80 10.02 ||19593240_LastPrice||

Size A: Outside Ø x pipe thickness.
