Series 196

FF 1"1/4 Simple MONOBLOCK manifold

Series 196

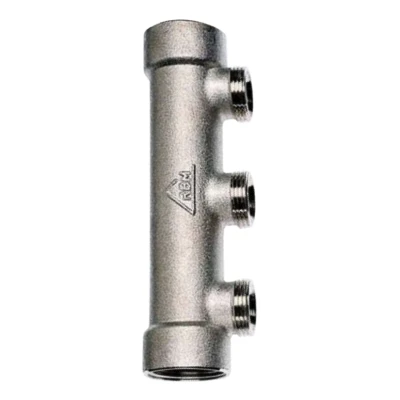

FF 1"1/4 Simple MONOBLOCK manifold produced from casting, with in-line connections and one-way lateral junctions.
Nickel brass body.
EUROCONUS M 3/4" threaded junction connections, centre distance 50 mm for copper, polyethylene and multilayer pipe fittings.
Threaded in-line connections FF UNI-EN-ISO 228.
Max. temperature: 110° C
Maximum operating pressure: 1000 kPa

FF 1"1/4 simple manifolds

Code Measure Ways Pack Outer Cat.
196.07.30 G 1"1/4- - - - 3 3 3 04.01 ||01960730_LastPrice||
197.07.30 G 1"1/4- - - - 4 2 2 04.01 ||01970730_LastPrice||
198.07.30 G 1"1/4- - - - 5 3 3 04.01 ||01980730_LastPrice||
199.07.30 G 1"1/4- - - - 6 2 2 04.01 ||01990730_LastPrice||
200.07.30 G 1"1/4- - - - 7 3 3 04.01 ||02000730_LastPrice||
201.07.30 G 1"1/4- - - - 8 2 2 04.01 ||02010730_LastPrice||
202.07.30 G 1"1/4- - - - 9 2 2 04.01 ||02020730_LastPrice||
203.07.30 G 1"1/4- - - - 10 2 2 04.01 ||02030730_LastPrice||
204.07.30 G 1"1/4- - - - 11 2 2 04.01 ||02040730_LastPrice||
205.07.30 G 1"1/4- - - - 12 2 2 04.01 ||02050730_LastPrice||

Euroconus G3/4" thread - UNI-EN-ISO 228
