Angle press fitting for Tita-gas multilayer pipe - intermediate
Series 1960

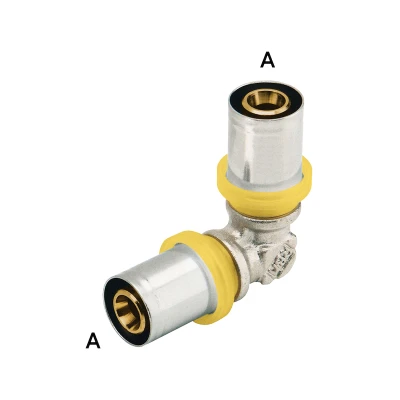

Press fitting for gas for multilayer pipe - angle - intermediate
Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344
Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants
| Fitting compatible with series TH clamps. |
| Externally nickel-plated brass body |
| HNBR seals (complying with UNI EN 682) |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Max operating pressure 0.5 Bar |
Download
Certifications:
Certified system IIP UNI
Press fitting for gas for multilayer pipe - angle - intermediate
| Code | Size A | Pack | Outer | Cat. | € |
| 19601600 | 16x2 | 10 | 240 | 10.02 | ||19601600_LastPrice|| |
| 19602000 | 20x2 | 10 | 160 | 10.02 | ||19602000_LastPrice|| |
| 19602600 | 26x3 | 5 | 80 | 10.02 | ||19602600_LastPrice|| |
| 19603200 | 32x3 | 5 | 80 | 10.02 | ||19603200_LastPrice|| |
Size A: Outside Ø x pipe thickness.
