Series 1961

Angle press fitting for Tita-gas multilayer pipe - female connection

Series 1961

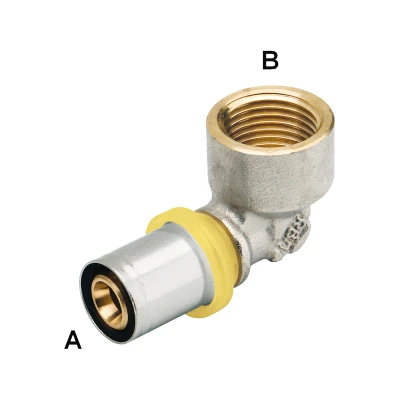

Press fitting for gas for multilayer pipe - angle - female connection

Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344

Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants

Fitting compatible with series TH clamps
Externally nickel-plated brass body
HNBR seals (complying with UNI EN 682)
Stainless steel pipe clamping bush
Dielectric pipe clamp cover in PE
Angle threaded connection F UNI-EN-ISO 228
Max operating pressure 0.5 Bar

Certifications:

Certified system IIP UNI

Press fitting for gas for multilayer pipe - angle - female connection

Code Size A Size B Pack Outer Cat.
1961.16.20 16x2 1/2" F 10 200 10.02 ||19611620_LastPrice||
1961.20.20 20x2 1/2" F 10 160 10.02 ||19612020_LastPrice||
1961.26.30 26x3 3/4" F 5 80 10.02 ||19612630_LastPrice||
1961.32.40 32x3 1" F 5 40 10.02 ||19613240_LastPrice||

Size A: Outside Ø x pipe thickness.
