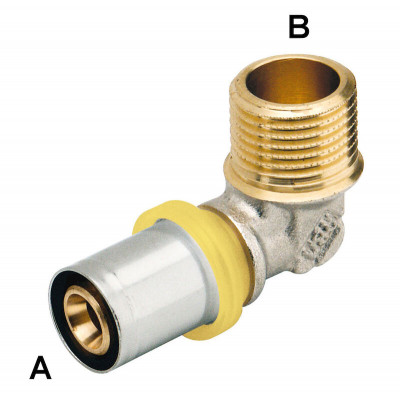

Angle press fitting for Tita-gas multilayer pipe - male connection
Series 1962
Press fitting for gas for multilayer pipe -angle - male connection
Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344
Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants
| Fitting compatible with series TH clamps. |
| Externally nickel-plated brass body |
| HNBR seals (complying with UNI EN 682) |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Angle threaded connection M UNI-EN-ISO 228 |
| Max operating pressure 0.5 Bar |
Download
Certifications:
Certified system IIP UNI
Press fitting for gas for multilayer pipe -angle - male connection
| Code | Size A | Size B | Box | Carton | Cat. | € |
| 19621620 | 16x2 | 1/2" M | 10 | 200 | 10.02 | ||19621620_LastPrice|| |
| 19622020 | 20x2 | 1/2" M | 10 | 160 | 10.02 | ||19622020_LastPrice|| |
| 19622630 | 26x3 | 3/4" M | 10 | 80 | 10.02 | ||19622630_LastPrice|| |
| 19623240 | 32x3 | 1" M | 5 | 80 | 10.02 | ||19623240_LastPrice|| |
Size A: Outside Ø x pipe thickness
Size B: thread UNI-EN-ISO 228
