Tee press fitting for Tita-gas multilayer pipe - intermediate
Series 1963

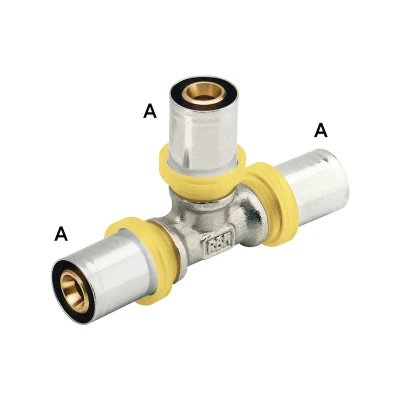

Gas press fitting for multilayer pipe - T-shaped - intermediate
Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344
Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants
| Fitting compatible with series TH clamps. |
| Externally nickel-plated brass body |
| HNBR seals (complying with UNI EN 682) |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Max operating pressure 0.5 Bar |
Download
Certifications:
Certified system IIP UNI
Gas press fitting for multilayer pipe - T-shaped - intermediate
| Code | Size A | Pack | Outer | Cat. | € |
| 19631600 | 16x2 | 10 | 120 | 10.02 | ||19631600_LastPrice|| |
| 19632000 | 20x2 | 10 | 80 | 10.02 | ||19632000_LastPrice|| |
| 19632600 | 26x3 | 5 | 40 | 10.02 | ||19632600_LastPrice|| |
| 19633200 | 32x3 | 5 | 40 | 10.02 | ||19633200_LastPrice|| |
Size A: Outside Ø x pipe thickness.
