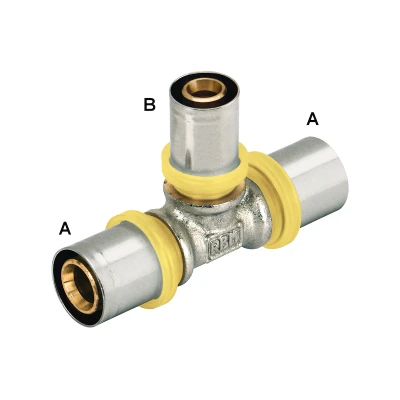

Tee press fitting for Tita-gas multilayer pipe - central reduced way
Series 1965.B
Gas press fitting for multilayer pipe - T-shaped - reduced central way
Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344
Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants
| Fitting compatible with series TH clamps. |
| Externally nickel-plated brass body |
| HNBR seals (complying with UNI EN 682) |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Max operating pressure 0.5 Bar |
Download
Certifications:
Certified system IIP UNI
Gas press fitting for multilayer pipe - T-shaped - reduced central way
| Code | Size A | Size B | Box | Carton | Cat. | € |
| 19651630 | 20x2 | 16x2 | 10 | 80 | 10.02 | ||19651630_LastPrice|| |
| 19651660 | 26x3 | 16x2 | 10 | 40 | 10.02 | ||19651660_LastPrice|| |
| 19652020 | 26x3 | 20x2 | 5 | 80 | 10.02 | ||19652020_LastPrice|| |
| 19652040 | 32x3 | 20x2 | 5 | 40 | 10.02 | ||19652040_LastPrice|| |
| 19652600 | 32x3 | 26x3 | 5 | 40 | 10.02 | ||19652600_LastPrice|| |
Size A-B: Outside Ø x pipe thickness.
