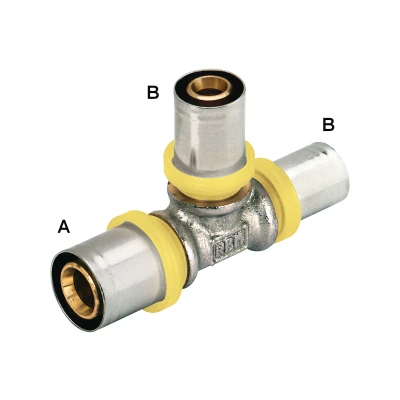

Tee press fitting for Tita-gas multilayer pipe - central and side reduced way
Series 1965.C
Gas press fitting for multilayer pipe - T-shaped - reduced central and lateral way
Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344
Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants
| Fitting compatible with series TH clamps. |
| Externally nickel-plated brass body |
| HNBR seals (complying with UNI EN 682) |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Max operating pressure 0.5 Bar |
Download
Certifications:
Certified system IIP UNI
Gas press fitting for multilayer pipe - T-shaped - reduced central and lateral way
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 19651610 | 20x2 | 16x2 | 10 | 40 | 10.02 | ||19651610_LastPrice|| |
| 19651690 | 26x3 | 16x2 | 5 | 20 | 10.02 | ||19651690_LastPrice|| |
| 19652070 | 26x3 | 20x2 | 5 | 20 | 10.02 | ||19652070_LastPrice|| |
Size A-B: Outside Ø x pipe thickness.
