Kilma-ROLL rolled panel
Series 1978

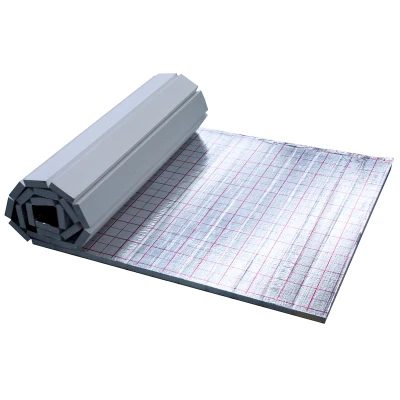

"Kilma-ROLL" rolled panel.
| Roll panel made of expanded polystyrene, bonded with reflective aluminised film, and featuring cross tracing with 50mm installation spacing. Can be combined with other panels by overlapping the reflective film on one side. |
| Euroclass E |
Download
KILMA-ROLL
| Code | Useful Dim. (mm) | Insul. Th. (mm) | Heat Res. | Box | Box m² | Pallet m² | Cat. | €/m² |
| 19782002 | 1000x10000x20 | 20 | 0,606 | 1 | 10 | 70 | 30.04 | ||19782002_LastPrice|| |
| 19783002 | 1000x10000x30 | 30 | 0,909 | 1 | 10 | 60 | 30.04 | ||19783002_LastPrice|| |
| 19784002 | 1000x10000x40 | 40 | 1,212 | 1 | 10 | 50 | 30.04 | ||19784002_LastPrice|| |
| 19785002 | 1000x10000x50 | 50 | 1,515 | 1 | 10 | 50 | 30.04 | ||19785002_LastPrice|| |
KILMA-ROLL EVO with athermanous elements
| Code | Useful Dim. (mm) | Insul. Th. (mm) | Heat Res. | Box | Box m² | Pallet m² | Cat. | €/m² |
| 19784012 | 1000x10000x40 | 40 | 1,333 | 1 | 10 | 50 | 30.04 | ||19784012_LastPrice|| |
For head joints use anodised aluminium adhesive tape code 2018.00.02
