Series 1999.B

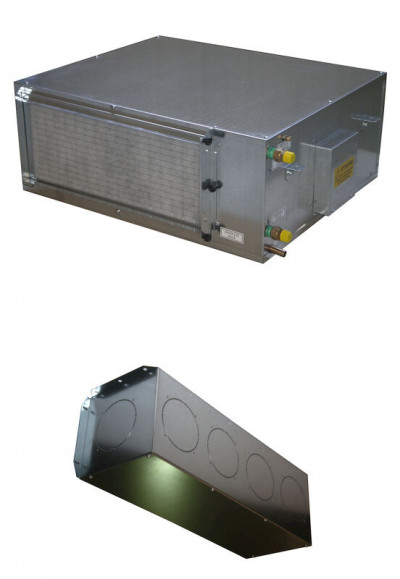

Ductable dehumidifier for false ceilings, 23.7 l/24h

Series 1999.B
Ductable dehumidifier for false ceilings, 23.7 l/24h.
Structure made of galvanised sheet metal panels, lined internally with sound-absorbing mat made of open-cell polyurethane foam.
Centrifugal fan with forward curved blades, equipped with 3 selectable speeds.
Refrigeration unit with hermetic R290 gas compressor (84g / 100g for Deuclima) and additional pre- and post-cooling hydronic coils.
Deuclima is equipped with a motorised 2-way valve and an additional coil for cold supply air integration.
Electrical panel complete with terminal board and diagnostic signalling LED; consent from KILMA EVO 2 HC / KILMA SET regulators with option to remotely connect alarms and LED signalling.
Nominal air flow rate: 200 m³/h (300 m³/h in integration for Deuclima)
Water flow rate: 240 l/h
Power supply: 230V/50Hz
Dimensions (LxHxW): 645x550x247mm
Weight: 30 Kg (56 Kg Deuclima)
Hydronic connections: 2x1/2" F (12kPa)
Condensate drain connection: DN14

Certifications:

Ductable ceiling mounted isothermal dehumidifier

Code Model Assembly Pack Outer Cat.
1999.26.02 DEW 26-S False ceiling 1 1 30.09 ||19992602_LastPrice||

Dehumidifier with sensitive heat integration option ductable and suitable for false ceilings

Code Model Assembly Pack Outer Cat.
1999.26.22 Deuclima 26-S False ceiling 1 1 30.09 ||19992622_LastPrice||

Delivery plenum

Code Model Pack Outer Cat.
2291.26.02 4 x DN100 1 1 30.09 ||22912602_LastPrice||
2292.26.02 3 x DN125 1 1 30.09 ||22922602_LastPrice||

Recirculation plenum

Code Model Pack Outer Cat.
5003.16.62 1 x DN160 1 1 30.09 ||50031662_LastPrice||
