Series 2011.A

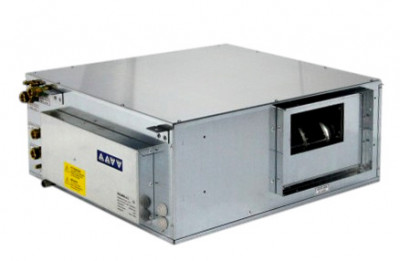

Ductable dehumidifier for false ceilings

Series 2011.A
Ductable dehumidifier for false ceilings, 38.3 l/24h.
Structure made of galvanised sheet metal panels, lined internally with sound-absorbing mat made of open-cell polyurethane foam.
Centrifugal fan with forward curved blades, equipped with 6 selectable speeds.
Filter type G3 removable in all directions.
Refrigeration unit with hermetic R134a gas compressor (300g / 580g for Deuclima) and additional pre- and post-cooling hydronic coils.
Deuclima is equipped with a motorised 2-way valve and an additional coil for cold supply air integration.
Electrical panel complete with terminal board and diagnostic signalling LED; consent from KILMA EVO 2 HC / KILMA SET regulators with option to remotely connect alarms and LED signalling.
Nominal air flow rate: 350 m³/h
Water flow rate: 350 l/h
Power supply: 230V/50Hz
Dimensions (LxHxW): 705x593x262 mm
Weight: 37 Kg (41 Deuclima)
Hydronic connections: 4x1/2" F (12kPa)
Condensate drain connection: DN19

Certifications:

Ductable ceiling mounted isothermal dehumidifier

Code Model Assembly Pack Outer Cat.
2011.00.02 DEW 35-S False ceiling 1 1 30.09 ||20110002_LastPrice||

Dehumidifier with sensitive heat integration option ductable and suitable for false ceilings

Code Model Assembly Pack Outer Cat.
2011.00.12 DEU 35-S False ceiling 1 1 30.09 ||20110012_LastPrice||

Delivery plenum

Code Model Pack Outer Cat.
2294.26.02 6 x DN100 1 1 30.09 ||22942602_LastPrice||
2295.26.02 5 x DN125 1 1 30.09 ||22952602_LastPrice||

Recirculation plenum

Code Model Pack Outer Cat.
2292.35.02 2 x DN125 1 1 30.09 ||22923502_LastPrice||
2292.50.02 2 x DN160 1 1 30.09 ||22925002_LastPrice||
