Series 2011.B

Ductable dehumidifier for false ceilings

Series 2011.B

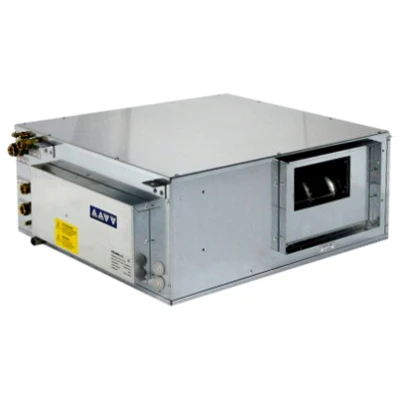

Ductable dehumidifier for false ceilings, 60.1 l/24h.
Structure made of galvanised sheet metal panels, lined internally with sound-absorbing mat made of open-cell polyurethane foam.
Centrifugal fan with forward curved blades, equipped with 6 selectable speeds.
Filter type G4 removable in all directions.
Refrigeration unit with hermetic R410 gas compressor (430 g/770 g for Deuclima) and additional pre- and post-cooling hydronic coils.
Deuclima is equipped with a motorised 2-way valve and an additional coil for cold supply air integration.
Electrical panel complete with terminal board and diagnostic signalling LED; consent from KILMA EVO 2 HC / KILMA SET regulators with option to remotely connect alarms and LED signalling.
Nominal air flow rate: 500 m³/h
Water flow rate: 500 l/h
Power supply: 230 V/50 Hz
Dimensions (LxHxD): 732x570x322 mm
Weight: 51 Kg (52 Deuclima)
Hydronic connections: 4x1/2" F (16kPa)
Condensate drain connection: DN19

Download

Certifications:

Ductable ceiling mounted isothermal dehumidifier

Code Model Assembly Pack Outer Cat.
20110052 DEW 50-S False ceiling 1 1 30.09 ||20110052_LastPrice||

Dehumidifier with sensitive heat integration option ductable and suitable for false ceilings

Code Model Assembly Pack Outer Cat.
20110062 DEU 50-S False ceiling 1 1 30.09 ||20110062_LastPrice||

Ductable equipment designed for horizontal fitting on suspended ceilings.
