Press fitting for Tita-gas multilayer pipe
Series 2085
Press fitting for gas for multilayer pipe - rotary nut -flat seat gas thread
Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344
Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants
| Fitting compatible with series TH clamps. |
| Externally nickel-plated brass body |
| HNBR seals (complying with UNI EN 682) |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Gas threaded connection, flat seat |
| Max operating pressure 0.5 Bar |
Download
Certifications:
Certified system IIP UNI

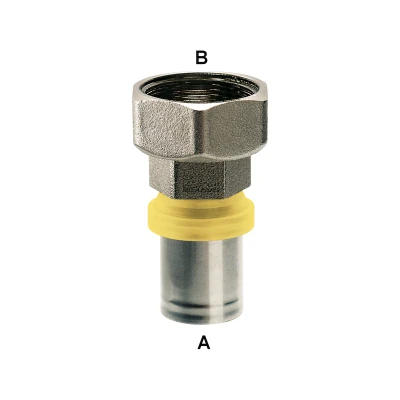

Press fitting for gas for multilayer pipe - rotary nut -flat seat gas thread
| Code | Size A | Size B | Box | Carton | Cat. | € |
| 20851620 | 16x2 | 1/2" F | 10 | 200 | 10.02 | ||20851620_LastPrice|| |
| 20851630 | 16x2 | 3/4" F | 10 | 160 | 10.02 | ||20851630_LastPrice|| |
| 20852030 | 20x2 | 3/4" F | 10 | 160 | 10.02 | ||20852030_LastPrice|| |
| 20852640 | 26x3 | 1" F | 10 | 120 | 10.02 | ||20852640_LastPrice|| |
Size A: Outside Ø x pipe thickness
Size B: thread UNI-EN-ISO 228
Connection that can be used for the connection to series 2136 manifolds, valve kit plus box for series 2142 buried systems and recessed kit for series 2140 outlet fitting.
