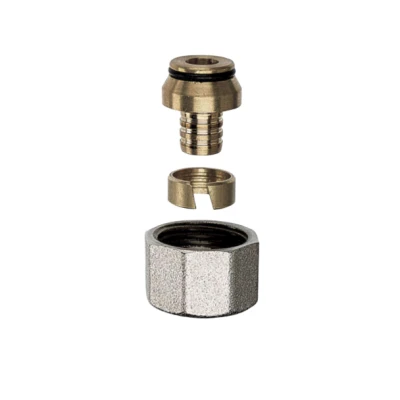

Compression fitting for polyethylene pipe.
Series 217.A
Compression fitting for polyethylene pipe.
| Brass ogive. |
| Nickel plated brass nut. |
| Elastomer seal ring. |
| Euroconus F G3/4" threaded connection. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
Polyethylene pipe fitting
| Code | Measure | Pack | Outer | Cat. | € |
| 217.12.00 | 12x2 | 10 | 100 | 09.01 | ||02171200_LastPrice|| |
| 217.15.00 | 15x2 | 10 | 100 | 09.01 | ||02171500_LastPrice|| |
| 217.15.10 | 15x2,5 | 10 | 100 | 09.01 | ||02171510_LastPrice|| |
| 217.16.10 | 16x2,2 | 10 | 100 | 09.01 | ||02171610_LastPrice|| |
| 217.18.00 | 18x2 | 10 | 100 | 09.01 | ||02171800_LastPrice|| |
| 217.20.10 | 20x2,8 | 10 | 100 | 09.01 | ||02172010_LastPrice|| |
| 217.21.00 | 21x2,5 | 10 | 100 | 09.01 | 10,71 |
Euroconus G 3/4" thread UNI-EN-ISO 228
Size: Outside Ø x pipe thickness
Komo certified fitting for polyethylene pipe
| Code | Measure | Pack | Outer | Cat. | € |
| 217.16.60 | 16x2 | 10 | 100 | 09.01 | ||02171660_LastPrice|| |
| 217.17.60 | 17x2 | 10 | 100 | 09.01 | ||02171760_LastPrice|| |
| 217.20.60 | 20x2 | 10 | 100 | 09.01 | ||02172060_LastPrice|| |
